Hot Work Tool Steel

Features of Hot Work Tool Steel

• 1 Our hot work tool steel is a uniquely processed group of steel used to shape and cut other materials at high temperature. Classified with the ‘H’ prefix, ‘H-group’ steels undergo intense processing to allow them to retain strength and hardness whilst being used in high temperature conditions.
  The characteristic hardness and resistance of our hot work tool steel is due to high level of carbide, moderate level of alloy and low level of carbon.

  Our H1–H19 steels contain approx. 5% chromium, H20–H39 contain approx. 10-18% tungsten and 3-4% chromium, and our H40–H59 steels are based on molybdenum.
  AISI H13 steel consists of chromium, molybdenum and vanadium and is known for its high hardenability and great toughness.
  The molybdenum and vanadium act as strengthening agents while the chromium content helps the AISI H13 tool steel to withstand softening when used at high temperatures. It also combines shock and abrasion resistance, has good red hardness, can resist rapid cooling and withstand premature heat checking. The H13 tool steel has good machinability, good weldability and good ductility and it can be formed by conventional means.   So H13 steel applications is very range in hot forged mold, hot work tool.

   ■ HOT WORK STEEL热作模具钢

  编号 NO:	近似钢号					用途	Application
  	中国GB	美国AISI	德国DIN	日本JIS	外企 Foreign Enterprise
  1	4Cr5MoSiV1	H13	1.2344	SKD61	ASSAB 8407	铝压铸、挤压模、薄壁塑胶模	For aluminum die casting,pressing mold.pladtic thin wall mold
  2	4Cr5MoSiV	H11	1.2343	SKD6		铝压铸、挤压模、薄壁塑胶模	For aluminum die casting,pressing mold,pladtic thin wall mold
  3	*4Cr5Mo2SiV	H13 Modify	1.2367			铝、镁、钛压模、挤压模，性能明显优于H13	For aluminum,agmesoi,titanium press mold,press-ing mold, pressing mold
  4	*3Cr3Mo3V	H10 Modify	1.2365	SKD7		热稳定性高，铜挤压模	For Cu press mold,better heating staability
  5	3Cr2W8V	H21	1.2581	SKD5		热稳定性高，冷热交变较缓的热作工具及锻模	For hotwork tool and forging mold,good heating stability
  6	4Cr5MoV1Si	H13 Modify	1.2344		ASSAB 8407	锤锻模块用钢，耐磨好	For forging mold,good wear-resistin
  7	5CrNiMo	L6	1.2713	SKT4		大中型锤模块用钢	For mid-large size of forging mold




  编号 NO:	热作模具钢化学成份(% ) Chemical composition											退火状态 硬度≤ Annealed  Hardness	热处理温度(℃) Heal treatment temp		回火硬度 HRC Secondary hardness
  	C	Si	Mn	P≤	S≤	Cr	W	Mo	V				淬火  Hardening	回火 Tempering
  1	0.39	1.10	0.30	0.028	0.020	5.10	0.30	1.55	0.90			235	1020	530-560	54-27
  2	0.39	1.10	0.30	0.028	0.020	5.10	0.30	1.35	0.40			235	1020	530-560	54-47
  3	0.38	0.50	0.30	0.018	0.012	5.10	0.50	1.80	0.80			235	1020	530-560	52-53
  4	0.32	0.35	0.30	0.028	0.020	3.00		2.80	0.55			235	1020	530-560	52-53
  5	0.35	0.35	0.30	0.030	0.030	2.50	8.00		0.30			241	1100-1150	580	50
  6	0.39	1.00	0.40	0.030	0.020	5.20	1.70	1.40	0.90			241	1100-1150	590-630	53-47
  7	0.55	0.35	0.65	0.030	0.030	0.65		1.20	$0.10			235	预硬840	预硬500	40-45

  AISI H13 tool steel is characterized by:
  High level of toughness and ductility
  Good resistance to abrasion at both low and high temperatures
  Good high-temperature strength
  High through-hardening properties
  Very limited distortion during hardening
  Good resistance to thermal fatigue
  Related Specifications ASTM A681-1999    H13 Tool Steel data files as following

  (1). AISI H13 tool steel Chemical composition
  C(％) 0.32～0.45  Si(％)   0.80～1.20  Mn(％) 0.20～0.50
  P(％) ≤0.030     S(％)  ≤0.030  Cr(％) 4.75～5.50
  Mo(％) 1.10～1.75 V(％)  0.80～1.20
  (2). AISI H13 tool steel Form of Supply

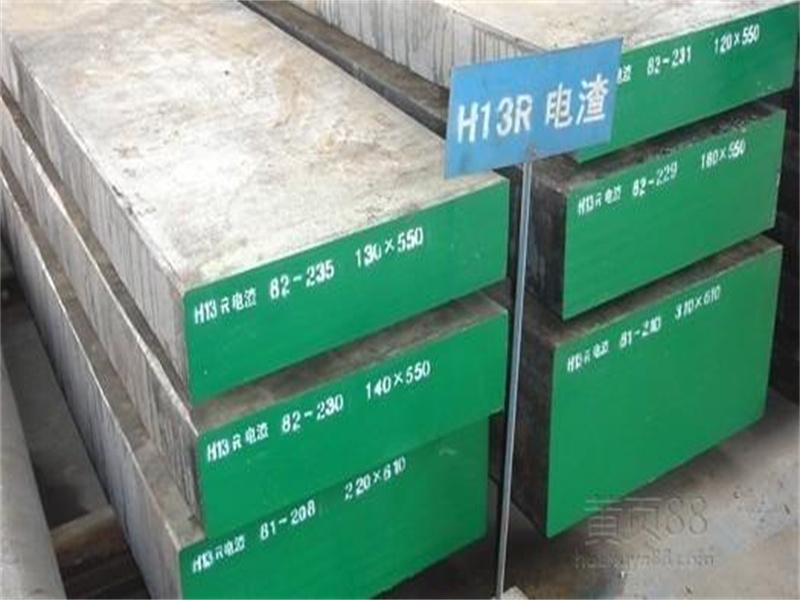

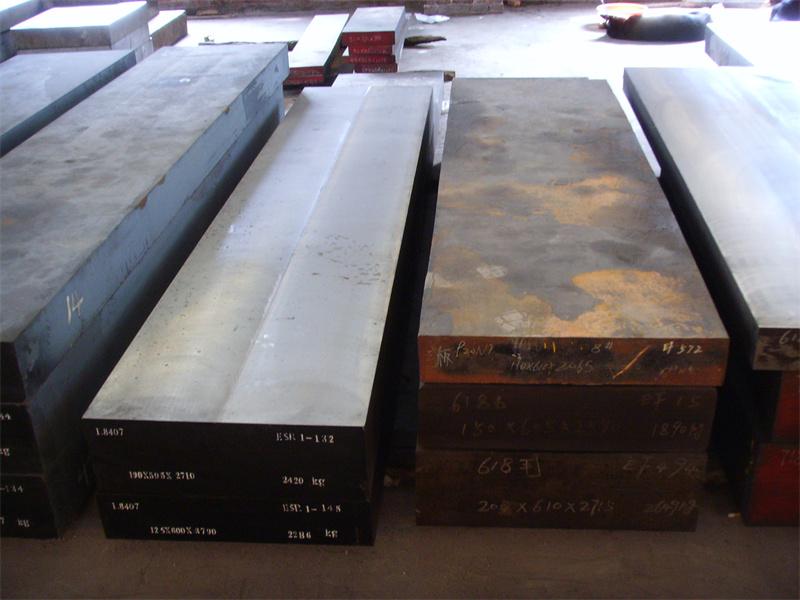

  Dongguan Teamwise Metal supply H13 round bar, flat bar, plate and square block. round bar can be sawn to your required lengths as one offs or multiple cut pieces. we can supply the Steel plate and sheet rectangular pieces can be sawn from flat bar, sheet or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
  Surface Finish: Black, Rough Machined, Turned or as per given requirements.
  Details as our catalogue showing, pls refer.
