SKD11 Tool Steel

Features of SKD11 Tool Steel

• 1 JIS SKD11 Tool Steel is a high-carbon and high-chromium alloy tool steel that is used for making long-life high-precision cold-work dies. SKD11 tool steel has good wear resistance and size ability after heat treatment.

  Related Specifications A681-1999 | JIS G4404(2000) | GB /T1299

  AISI SKD11 Tool Steel Data PDF file DOWN

  SKD11 Tool Steel Chemical composition
  C(％) 1.40～1.60 Si(％) ≤0.40 Mn(％) ≤0.60
  P(％) ≤0.030     S(％) ≤0.030 Cr(％) 11.0～13.0
  Mo(％) 0.80～1.20 V(％) 0.20～0.50
  SKD11 steel Equivalent Tool Steel | flat steel bar
  Ref to our catalogue showing

  Form of Supply

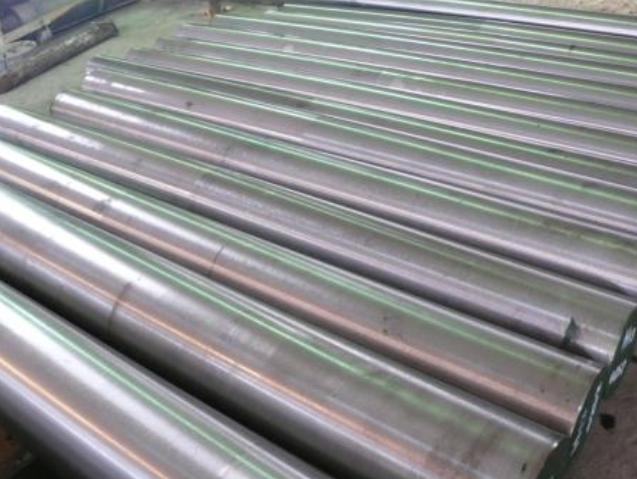

  SKD11 tool steel, we can supply the round bar, flat bar, plate and square block. Diameters can be sawn to your required lengths as one offs or multiple cut pieces. Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.

  Heat treatment Related
  Annealing of SKD11 Tool Steel | JIS Cold work Alloy Tool steel flat bar
  Annealing temperature / ℃: 830 ~ 880, Hardness after annealing HRC: ≤255

  Hardening of JIS Alloy tool steel SKD11 steel flat bar
  Quenching temperature / ℃: 1030,
  Quenching medium: air-cooled,
  Tempering temperature / ℃: 180
  After quenching and tempering hardness HRC: ≥58

  Forged of Japanese JIS SKD11 steel bar
  Thermal processing temperature / ℃ | Start: 1000
  Thermal processing temperature / ℃ | Termination: 800

  Physical Properties and Mechanical Properties of JIS SKD11 flat steel bar
  The mechanical properties of annealed JIS SKD11 steel are outlined in the table below

  Poisson’s ratio 0.27-0.30, Elastic modulus 190-210 Gpa ,

  The Physical properties of skd11 cold work alloy tool steel as below:
  Ref to our catalogue showing

  Applications
  SKD11 Tool Steel is used in the making of knife-edge mold, scissors, circular saw blades, metal stamping mold. Used to make cold work or hot work dressing dies, sides of rollers, screw lines, lines dies, transformer core stamping dies, rolled knives, steel tube forming rollers, special molding rollers, screw heading molds, etc. Also used for blanking dies, stamping dies and pressing dies with a thickness ≤ 6mm. It can also be found in the production of various kinds of scissors, inlaid blades and thread rolling dies. It is also used to make wear-resistant slider cold heading dies, deep drawing molding dies, cold extrusion dies and in the making of thermosetting resin molding dies and common plastic dies.

  Processing
  SKD11 tool steel round bar and flat sections can be cut to your required sizes. SKD11 ground steel bar can also be supplied, providing a high-quality tool steel precision ground tool steel bar to your required tolerances. SKD11 tool steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.


  COLD WORK STEEL冷作模具钢

  编号 NO:	近似钢号					用途	Application
  	中国GB	美国AISI	德国DIN	日本JIS	外企 Foreign Enterprise
  1	Cr12Mo1V1	D2	1.2379	SKD11		量产冲压模，剪切刀模，搓丝模、瓷制品模等	For pounch mold,knife mold,screw mold,chinawae mold
  2	*Cr12Mo1V			SKD10		量产冲压模，剪切刀模，搓丝模、瓷制品模等	For pounch mold,knife mold,screw mold,chinawae mold
  3	Cr12MoV	D5	1.2601			量产冲压模，剪切刀模，搓丝模、瓷制品模等	For pounch mold,knife mold,screw mold,chinawae mold
  4	Cr12	D3	1.2080	SKD1		耐磨挤压工具与导向板等	For wear-resisting press tool and guide palte etc
  5	*Cr8Mo2WVSi				ASSABBB	类于D2,但韧性好，更适宜线切加工	Similer D2,better toughness.
  6	Cr12W	D6	1.2436			冲压模、挤压模、拉伸模	For pounch mold,press mold,mech mold
  7	*5Cr8Mo2VSi	A8	1.2631			耐磨薄刃剪切刀具、压铸配件等	For weat-resisting cutter with thin knife edge
  8	Cr5Mo1V	A2	1.2363			重载及形状复杂冲压模，剪切刀具	For pweat-resisting cutter with thin knife edge
  9	9CrWMn	O1	1.2510	SKS3	BOHLERK460	薄冲压模，手饰压模	For thin pounch mold,headgear mold
  10	*9Cr2MoV		1.2327		BOHLERK310	量刃具、冷轧辊、滚丝轮等	For cold rolling roller,thread wheel
  11

  编号 NO:	冷作模具钢化学成份(% ) Chemical composition										退火状态 硬度≤ Annealed Hardness	热处理温度(℃) Heal treatment temp		回火硬度 HRC Secondary hardness
  	C	Si	Mn	P≤	S≤	Cr	W	Mo	V			淬火  Hardening	回火 Tempering
  1	1.50	0.35	0.35	0.030	0.030	12.10	≤0.40	0.85	0.60		255	1010-1050	200 530	62-63
  2	1.50	0.35	0.50	0.030	0.030	12.00	—	0.75	0.35		255	1020-1040	160	62-63
  3	1.60	0.35	0.35	0.030	0.030	12.00	—	0.50	0.20		255	1020-1040	250	57-59
  4	2.10	0.35	0.35	0.030	0.030	12.40	—	—	—		255	950-980	200	62
  5	1.00	1.00	0.45	0.030	0.030	8.20	0.80	1.80	0.70		255	1010-1050	520	61-63
  6	2.20	0.90	0.40	0.030	0.030	12.50	≤0.90	—	—		255	1010-1100	530	54-61
  7	0.52	0.90	0.35	0.030	0.030	8.20	≤1.75	1.50	0.40		255	1010-1050	500	56
  8	1.00	0.40	0.75	0.030	0.030	5.10	—	1.10	0.30		255	940-960	200	60-63
  9	0.93	0.30	1.20	0.030	0.030	0.50	0.50	≤0.30	0.23		217	800-820	200	60-62
  10	1.95	0.35	0.50	0.030	0.030	1.90	—	0.25	0.18		255	830	200	62
